The mobile foam unit is ideal for medium and large size fire, fire rating A B (solid materials, flammable liquids). A hose DN 45 or 70 of 20 m. , attached at pillar hydrant or external source, dispense a mixture of water and concentrated foam in a variable quantity between 3 and 6%.
This Mobile foam unit of 100 L , has 15 minutes of autonomy with a 3% mixing and a distance range of 20 m.
Max 200 cubic m. of foam in 15 minutes, with 2000 sq.m coverage area.
COMPONENTS:

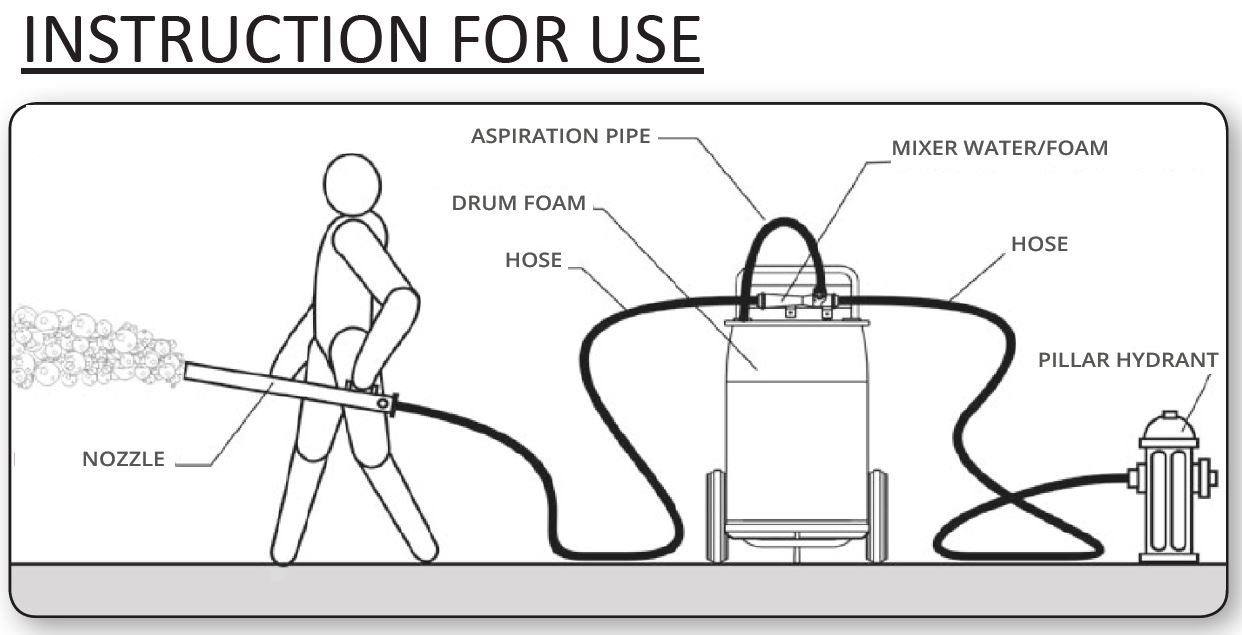

USE:
BRACKET
MOBILE UNIT CHASSIS
| CODICE | DESCRIZIONE |
| 1692-1 | DN 45 low expansion nozzle |
| 1692-2 | DN 45 medium expansion nozzle |
| 1692-3 | DN 70 low expansion nozzle |
| 1692-4 | DN 70 medium expansion nozzle |
AVAILABLE FOAM:
| FILM FOAM A.F.F.F. | ||
| CODICE | % DI UTILIZZO | NOTE |
| 9485 | 6 | Â |
| 9601 | 6 | Approved EN 1568-4 |
| 9485-1 | 6 | Temperature -20°C |
| FILM FOAM A.F.F.F.-A.R. | ||
| CODICE | % DI UTILIZZO | NOTE |
| 9487 | 6 | Approved EN 1568-4 |
- FIRE RATING: A B
-Â EXTINGUISHING AGENT: See the table
-Â PROPELLANT: External source
- TEMPERATURE RANGE: +5°C + 60°C / -20°C + 60°C
-Â NOMINAL CHARGE: 100 L
-Â FULL WEIGHT: ~ 165 kg
- DIMENSIONS: Height: 1350 mm - Width 600 mm - Depth 1200 mm
-Â DISCHARGE TIME: Variable (max 15 min. with 3% mixing)
-Â DRUM MATERIAL:Â PVC
-Â MIXING:Â min. 3% max. 6 %
-Â PACKAGING (standard): 1 pieces on pallet 80x120x150
