Approved / Certified Fire Extinguisher:
![impianto antincendio automatico a schiuma](/sites/default/files/inline-images/certificato.JPG)
Fire Rating: A B C
![](/sites/default/files/users/emmeadmin/classe-di-fuoco-a-b-c-.jpg)
- Powder Automatic Device, Industrial Series, available charge 6 kg , temperature range from -30°C to +60°C, certified according to the directive for pressure equipment PED 2014/68/EU.
- Quality Product certification guaranteed by Bureau Veritas Italia.
- Suitable for use on fire involving electrical voltages up to 1.000 V, at a distance of 1 mt.
- CYLINDER: Alloy steel, epoxypolyestere powder painting, Red Ral 3000.
- EXTINGUISHING AGENT: ABC Powder - MAP 20 %
- PROPELLANT: Nitrogen (N2 )
- VALVE: Automatic M. 30x1.5, set 93 °C. (with bulb in standard equipment) Supplied with pressure switch set at 11 bar.
- USE: A B C fire rating (solid materials, flammable liquids, flammable gas).
- ACTIVATION:
- Automatic when bulb temperature is reached.

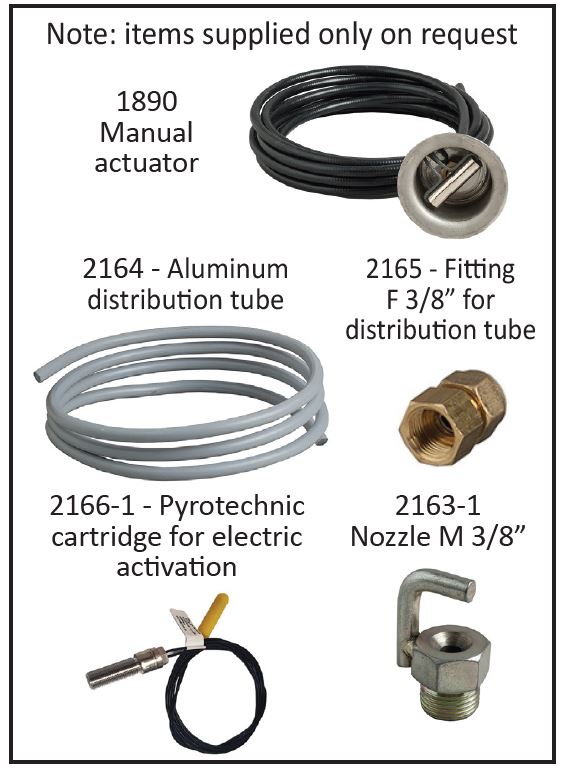

On request (see optional):
- with manual actuator with handle;
- with pyrotechnic cartridge for electric activation.
- BRACKET: Wall-mounted in standard equipment.
![powder](/sites/default/files/inline-images/accessori-powder.JPG)
Technical Specifications:
- FIRE RATING: A B C
- EXTINGUISHING AGENT: EPW 18462 (ABC powder - MAP 20 %)
- PROPELLANT: Nitrogen (N2 ) 15 Bar at 20°C
- TEMPERATURE RANGE: -30°C / +60°C
- POWDER QUANTITY: 6 kg
- DIMENSIONS (without bracket) H x L max x Ø cylinder (mm): 490 +/- 5 x 160 +/- 3 x 160 +/- 3
- M3/kg: 0,1373
- DISCHARGE TIME: 35 sec.
- COVERAGE AREA: 10 sq.m
- CYLINDER PRESSURE TEST: PT 27 Bar
- MAX VALVE TIGHTENING: Between 40 and 50 Nm
- CYLINDER MATERIAL: Alloy steel
- EXTERNAL/INTERNAL TREATMENT: Sandblast and epoxypolyestere powder painting, Red Ral 3000 colour
