- Gas HFC Automatic Device, Mare Easy Series, available charge 3, 6, 12Kg , temperature range from -30°C to +60°C, certified according to the directive for pressure equipment PED 2014/68/EU . RINA certified, ISO 9094:2015.
- Quality Product certification guaranteed by Bureau Veritas Italia.
- Suitable for use on fire involving electrical voltages up to 1.000 V, at a distance of 1 mt.
- CYLINDER Alloy steel, epoxypolyestere powder painting, Red Ral 3000.
- EXTINGUISHING AGENT Gas HFC 227 ea.
- PROPELLANT Nitrogen (N2).
- VALVE Sprinkler M. 30x1.5, set 93 °C (with bulb in standard equipment)
- USE A B fire rating (solid materials, flammable liquids).
- ACTIVATION: Automatic when bulb temperature is reached.

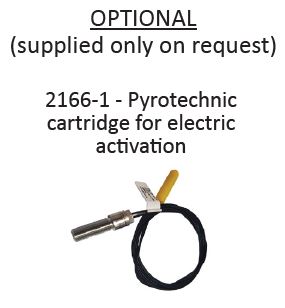

Is also possible, on request, with pyrotechnic cartridge for electric activation.
• BRACKET Wall-mounted in standard equipment.
- FIRE RATING: A B
- EXTINGUISHING AGENT: Gas HFC 227 ea
- PROPELLANT: Nitrogen (N2), 15 Bar at 20 °C
- TEMPERATURE RANGE: -30°C / +60°C
- GAS HFC QUANTITY HFC: 6 kg
- DIMENSIONS (without bracket) H x Ø cylinder (mm): 480 +/- 5 x 160 +/- 3
- C % (concentrazione gas in volume): 7,611
- M3/kg: 0,1373
- DISCHARGE TIME: 35 sec.
- COVERAGE AREA: 10 cubic m.
- CYLINDER PRESSURE TEST: PT 27 Bar
- VALVE TIGHTENING TORQUE: Between 40 and 50 Nm
- CYLINDER MATERIAL: Alloy steel
- EXTERNAL/INTERNAL TREATMENT: Sandblast and epoxypolyestere powder painting, Red Ral 3000 colour
