APPROVED/CERTIFIED DEVICE:
![RINA](/sites/default/files/inline-images/cert-rina_4.JPG)
FIRE RATING: A B
![](/sites/default/files/users/emmeadmin/classe-di-fuoco-a-b.jpg)
- Gas HFC Automatic Device, Mare Series, available charge 3, 6, 12 Kg , temperature range from -30°C to +60°C, certified according to the directive for pressure equipment PED 2014/68/EU. RINA certified, ISO 9094:2015.
- Quality Product certification guaranteed by Bureau Veritas Italia.
- Suitable for use on fire involving electrical voltages up to 1.000 V, at a distance of 1 mt.
- CYLINDER Alloy steel, epoxypolyestere powder painting, Red Ral 3000.
- EXTINGUISHING AGENT Gas HFC 227 ea.
- PROPELLANT Nitrogen (N2).
- VALVE Automatic M. 30x1.5, set 93 °C. (with bulb in standard equipment) Supplied with pressure switch set at 11 bar.
- USE A B fire rating (solid materials, flammable liquids).
- ACTIVATION:
- Automatic when bulb temperature is reached.

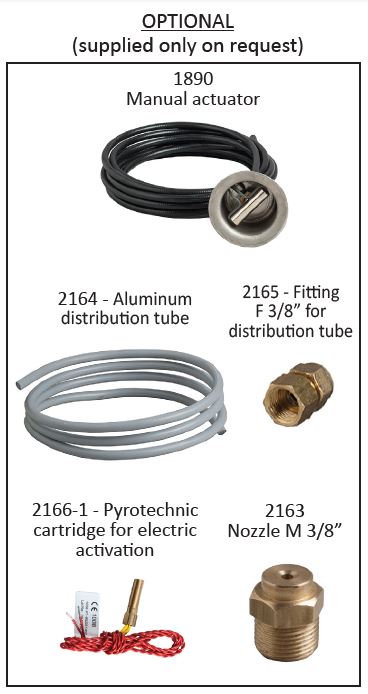

On request (see optional):
- with manual actuator with handle;
- with pyrotechnic cartridge for electric activation.
• BRACKET Wall-mounted in standard equipment.

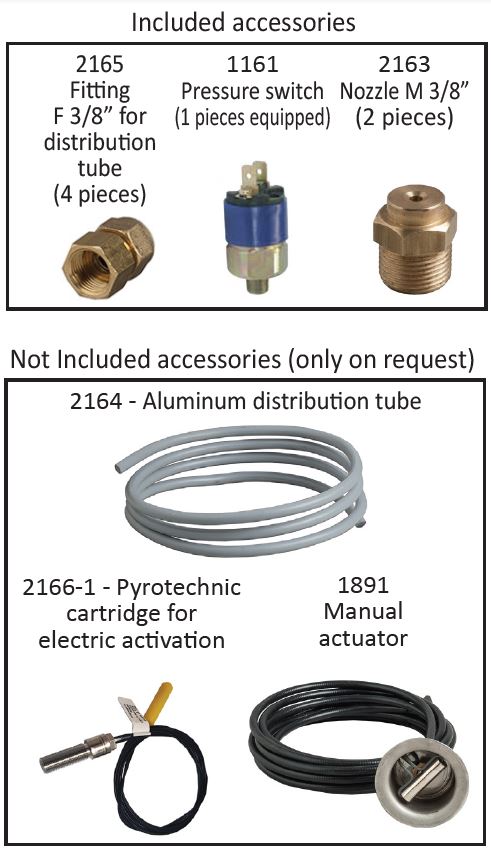

![serie mare](/sites/default/files/inline-images/serie-mare-en_2.JPG)
TECHNICAL SPECIFICATIONS:
- FIRE RATING: A B
- EXTINGUISHING AGENT: Gas HFC 227 ea
- PROPELLANT: Nitrogen (N2), 15 Bar at 20 °C
- TEMPERATURE RANGE: -30°C / +60°C
- GAS HFC QUANTITY HFC: 3 kg
- DIMENSIONS (without bracket) H x L max x Ø cylinder (mm): 440 +/- 5 x 140 +/- 3 x 130 +/- 1
- C % (concentrazione gas in volume): 7,611
- M3/kg: 0,1373
- DISCHARGE TIME: 20 sec.
- COVERAGE AREA: 5 c.m.
- CYLINDER PRESSURE TEST: PT 27 Bar
- VALVE TIGHTENING TORQUE: Between 40 and 50 Nm
- CYLINDER MATERIAL: Alloy steel
- EXTERNAL/INTERNAL TREATMENT: Sandblast and epoxypolyestere powder painting, Red Ral 3000 colour
