They are systems made and designed to be installed on board of pleasure boats, length no more than 24 meters, for the purpose of protecting the engine compartments.
They are systems made and designed to be installed on board of pleasure boats, length no more than 24 meters, for the purpose of protecting the engine compartments. The system must be installed internally to the engine compartment with specific support supplied. The valve equipped with a thermoexpanding bulb allows the activation of device when the set temperature is reach (standard bulb at 93°C). The valve is also equipped with a pressure switch for constant signalling of the pressure inside the device. On the valve is possible the installation of pyrotechnic cartridge for a remote activation.
- CYLINDER: In high-strength alloy steel, external powder painting Red Ral 3000
- EXTINGUISHING AGENT: ABC Powder
- PROPELLANT: Nitrogen (N2 )

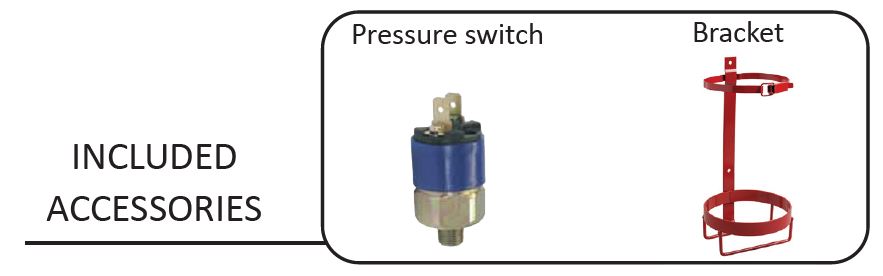

- VALVE: M. 30x1.5, with bulb in standard equipment, supplied with pressure switch set at 11 bar
- USE: A B C fire rating (solid materials, flammable liquids, flammable gas)
- ACTIVATION:
*Note: the valve allow the installation of only one of two optional activation, is not possible to install both at the same time
- BULB TEMPERATURE ACTIVATION: 93°C
- SYSTEM TEMPERATURE RANGE: -20°C/+60°C
- SYSTEM PRESSURE: 15 bar a 20°C
- BRACKET: Wall-mounted in standard equipment, iron painted

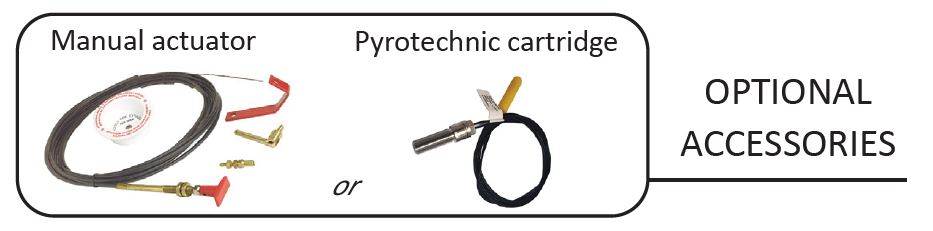

- Code 1890-35:
Manual actuator kit for remote activation, including:
- stainless steel cable 6 m, plastic coated, with brass terminals. With special self-tapping terminals that allow to cut cable at right mesure and then install into terminals;
- cable storage box, ABS white.
- Code 2166-1
Pyrotechnic cartridge for remote electric activation.
- CYLINDER: In high-strength alloy steel, external powder painting Red Ral 3000
- EXTINGUISHING AGENT: ABC Powder
- PROPELLANT: Nitrogen (N2 )
- VALVE: M. 30x1.5, with bulb in standard equipment, supplied with pressure switch set at 11 bar
- USE: A B C fire rating (solid materials, flammable liquids, flammable gas)
- ACTIVATION:
*Note: the valve allow the installation of only one of two optional activation, is not possible to install both at the same time
- BULB TEMPERATURE ACTIVATION: 93°C
- SYSTEM TEMPERATURE RANGE: -20°C/+60°C
- SYSTEM PRESSURE: 15 bar a 20°C
- BRACKET: Wall-mounted in standard equipment, iron painted
- Code 1890-35:
Manual actuator kit for remote activation, including:
- stainless steel cable 6 m, plastic coated, with brass terminals. With special self-tapping terminals that allow to cut cable at right mesure and then install into terminals;
- cable storage box, ABS white.
- Code 2166-1
Pyrotechnic cartridge for remote electric activation.
