Approved / Certified Fire Extinguisher:
![impianto antincendio automatico a schiuma](/sites/default/files/inline-images/certificato.JPG)
Fire Rating: A B
![](/sites/default/files/users/emmeadmin/classe-di-fuoco-a-b.jpg)
They are systems created and designed to be installed to protect unattended premises on a constant basis. The installation can take place internally and externally to the room to be protected, the extinguishant is supplied via special nozzles, connected to the aluminum pipe, for discharge at a pre-established point. The valve equipped with a thermo-expanding bulb allows the application of the activation cable (optional) and/ or the pyrotechnic cartridge (optional) for activation from remote control or detector for installation of the device outside the engine compartment. The valve is also equipped with a pressure switch for constant signalling of the pressure inside the device.
- CYLINDER: In high-strength alloy steel, external powder painting Red Ral 3000 Inside treatment: plastification coating
- EXTINGUISHING AGENT: Foam (2% SC-6 + 98% Water)
- PROPELLANT: Nitrogen (N2 )
- VALVE: M. 30x1.5, with bulb in standard equipment, supplied with pressure switch set at 11 bar
- USE: A B fire rating (solid materials, flammable liquids)
- ACTIVATION: - Automatic when bulb temperature is reached; On request (see optional):
- with manual actuator with handle,
- with pyrotechnic cartridge for electric activation.
*Note: the valve allow installation of both of two optional activation, is possible to install both at the same time
- BULB TEMPERATURE ACTIVATION 93°C
- BRACKET Wall-mounted in standard equipment, iron painted

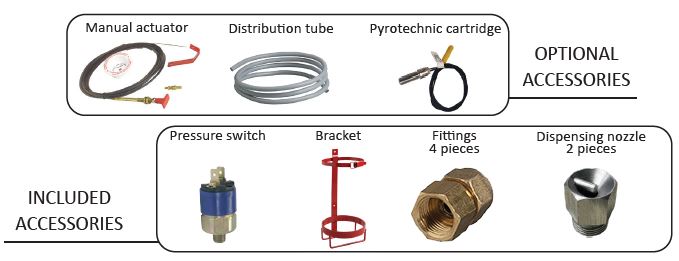

![accessories](/sites/default/files/inline-images/accessories.JPG)
TECHNICAL SPECIFICATIONS FOR OPTIONAL PARTS:
- Max covered Volume (m3): 10
- FIRE RATING: A B fire rating (solid materials, flammable liquids)
- EXTINGUISHING AGENT: Foam (2% SC-6 + 98% Water)
- PROPELLANT: Nitrogen (N2 ) 15 Bar at 20°C
- SYSTEM TEMPERATURE RANGE: +5°C / +60°C
- Nominal charge (L): 6
- Cylinder Volume (L): 7,5
- Cylinder diameter (mm) 160
- Max dimensions L x H (mm) 180 x 530
- Weight (Kg): ~ 10,45 (Weight includes: pressure switch, bracket, 2 dispensing nozzles, 4 fittings)

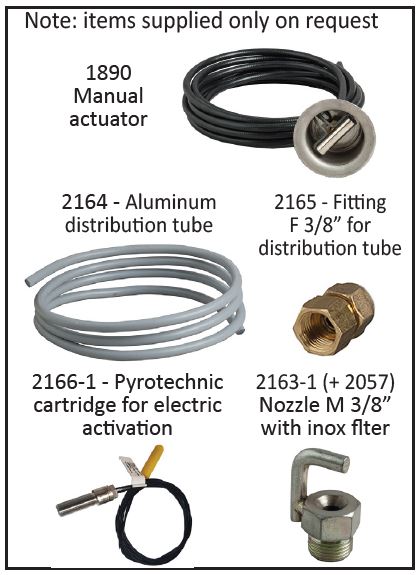

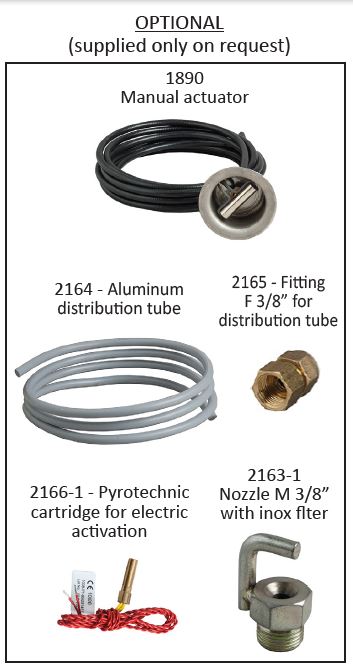

TECHNICAL SPECIFICATIONS FOR OPTIONAL PARTS:
- Code 1890-3:

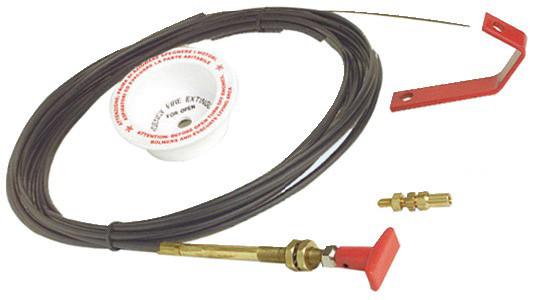

![1890-3](/sites/default/files/inline-images/1890-3.jpg)
Manual actuator kit for remote activation, including:
stainless steel cable 6 m, plastic coated, with brass terminals. With special self-tapping terminals that allow to cut cable at right mesure and then install into terminals;
- cable storage box, ABS white.
- Code 2164 (quantity for meters):

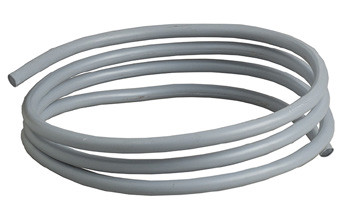

![2164](/sites/default/files/inline-images/tubo.jpg)
Distribution tube for extinguishing agent, in aluminum with PVC external coating, 10 mm diameter.
- Code 2166-1:
![2166-1](/sites/default/files/inline-images/2166-1.jpg)
Pyrotechnic cartridge for remote electric activation.
